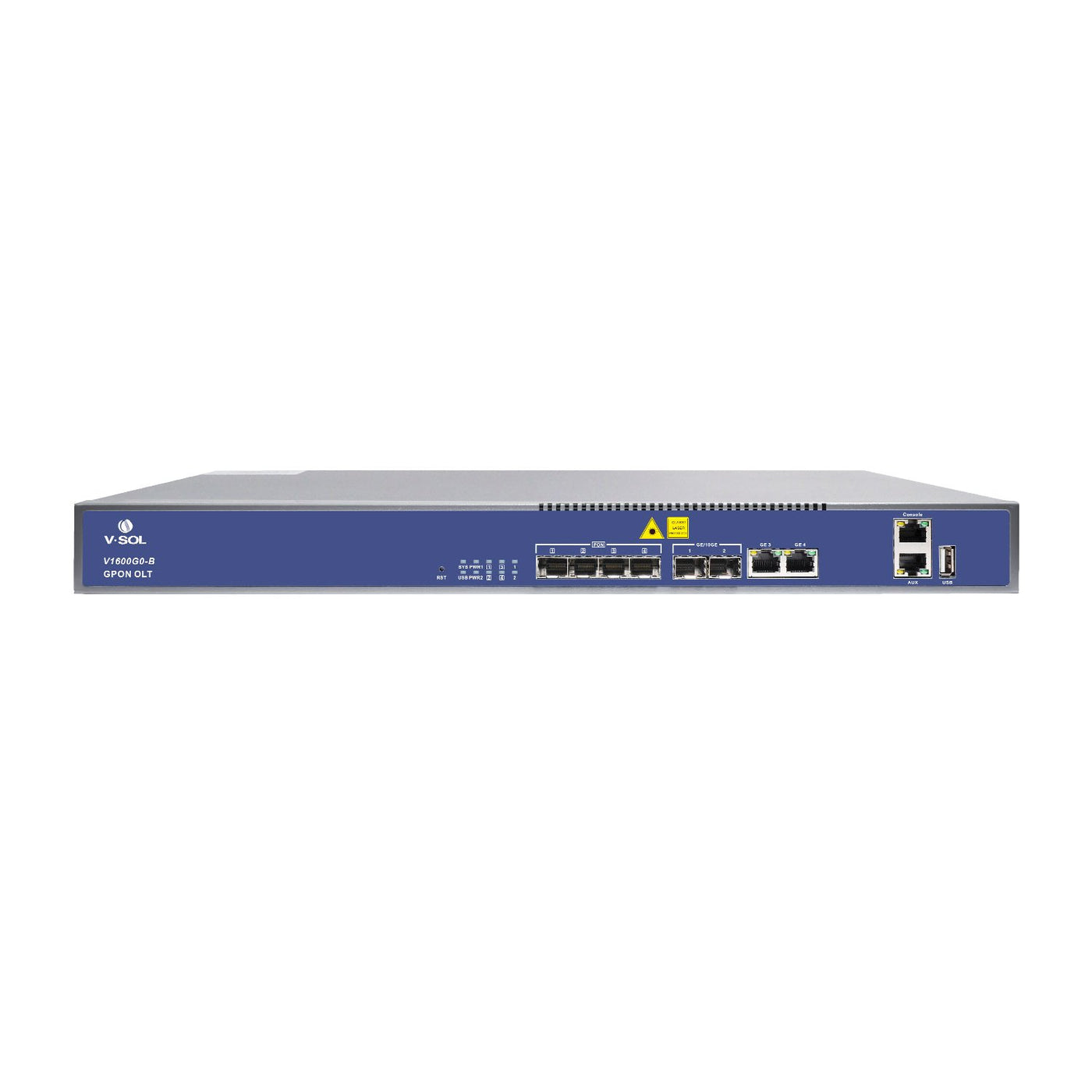

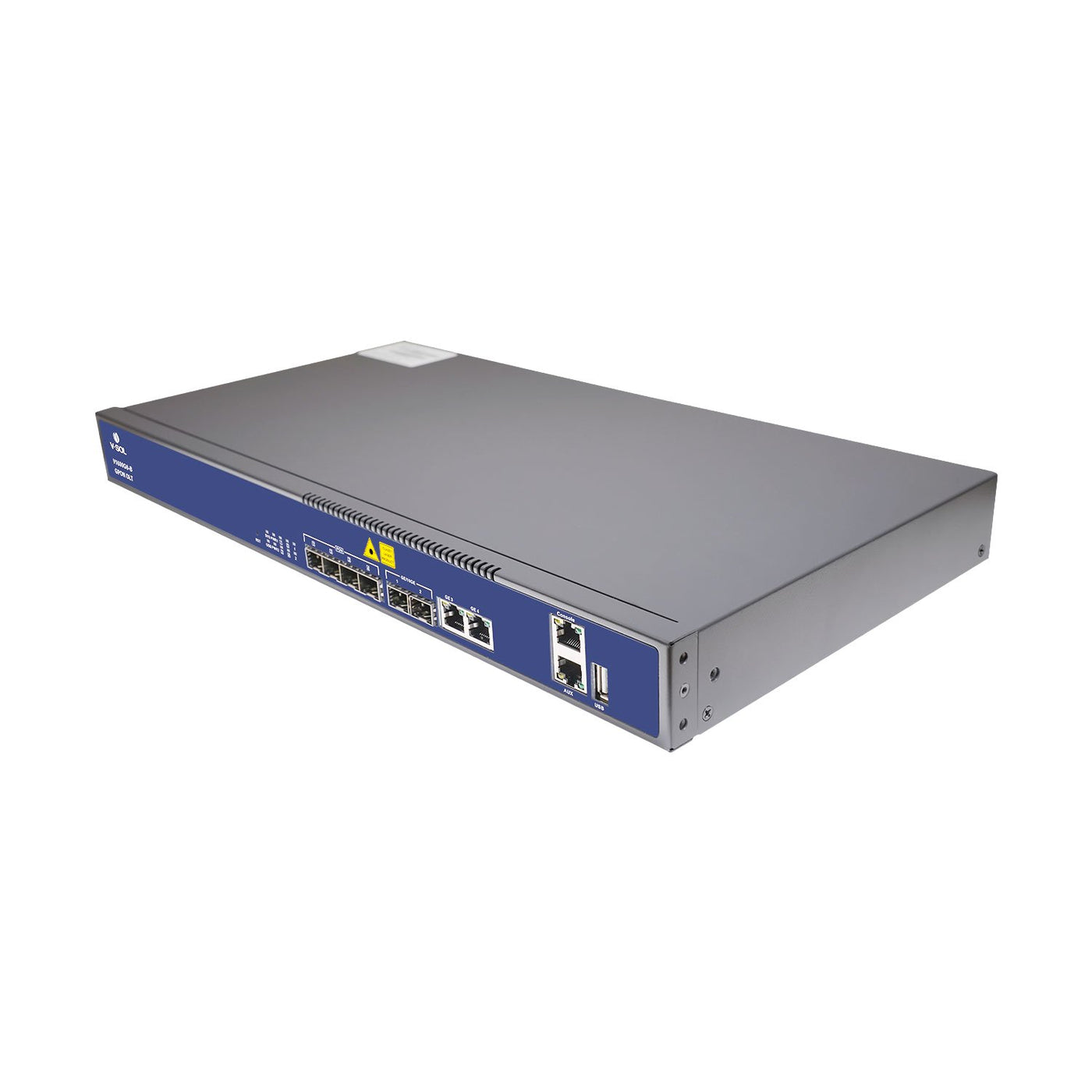

The V-Sol V1600G0-B 4 Port GPON Optical Line Terminal (OLT) is a compact, high-efficiency pizza-box style solution designed to meet the demands of flexible and fast FTTx broadband access. Perfect for deployments in sparse, remote, or cost-sensitive areas, as well as smart industrial parks, commercial buildings, and FTTM applications, this GPON OLT combines performance, reliability, and easy management. Supporting up to a 1:128 split ratio per port, it delivers powerful multi-user connectivity while keeping operational costs low.

Equipped with Layer 3 dynamic routing protocols including RIP and OSPF, the V1600G0-B ensures stable, intelligent routing and automatic uplink failover to safeguard data transmission. The device supports IPv4/IPv6 dual stack for future-ready networking and comes with a flexible, policy-based firewall to protect against a wide range of cyber threats. This ensures a secure, high-speed connection environment for both enterprise and service provider applications.

The V-Sol V1600G0-B simplifies deployment with template-based configuration, plug-and-play functionality, and zero-threshold, low-cost O&M—making it easy to roll out FTTH services quickly. With Cloud EMS support, operators can centrally manage, monitor, and maintain network performance from anywhere. The compact 1U rackmount design saves space in network cabinets, while the 10Gbps SFP+ uplink ports ensure ultra-fast backbone connectivity for demanding workloads.

Powered by a 104Gbps backplane bandwidth and capable of handling up to 47.616Mpps port forwarding rate, the V1600G0-B delivers stable, high-speed data transfer across the network. Despite its powerful capabilities, it maintains a low 35W power consumption, making it both eco-friendly and cost-efficient to run. Whether for small ISPs, enterprise networking, or municipal broadband projects, the V-Sol V1600G0-B 4 Port GPON OLT offers the scalability, security, and performance needed to support modern fiber-optic networks.

FEATURES:

• All-in-one Four Port GPON OLT
• 10Gbps SFP+ Uplink
• L3 OLT RIP/OSPF
• IPv4/IPv6 Dual Stack
• Cloud EMS support
• Full service management
• Compact pizza box design

SPECIFICATIONS:

• Rack: 1U 19 inch standard box
• Uplink Port
  • QTY: 4
  • RJ45: 2
  • SFP+ (10GE): 2
• EPON Port Specification
  • QTY: 4
  • Physical Interface: SFP Slots
  • Max splitting ratio: 1:128
• Backplane Bandwidth: 104Gbps
• Port Forwarding Rate: 47.616Mpps
• Power Consumption: 35W
• Power Supply
  • AC Power Adapter: Working Voltage Range: 100~240V | Rated Voltage: 110V/220V
  • DC Power Adapter: Working Voltage Range: -36~-75V | Rated Voltage: -48V/-60V
• Operating Environment
  • Working Temperature: -20 ~ +60°C
  • Storage Temperature: -40 ~ +70°C
  • Relative Humidity: 5 ~ 95% (non-condensing)
• Product Dimensions: 44.2 x 23 x 4.3 cm
• Product Weight: 2950 g

WHAT'S IN THE BOX:

• V-Sol V1600G0-B 4 Port GPON Optical Line Terminal x1
